ADA Compliance & Signage Guide

Non-compliance with ADA signage regulations can lead to fines up to $230,464 for repeat violations, private lawsuits, and project delays. Proper signage not only fulfills legal requirements but also ensures accessibility for millions of Americans with disabilities. This guide covers the essentials of ADA-compliant signage, including design standards, placement rules, and penalties for violations.

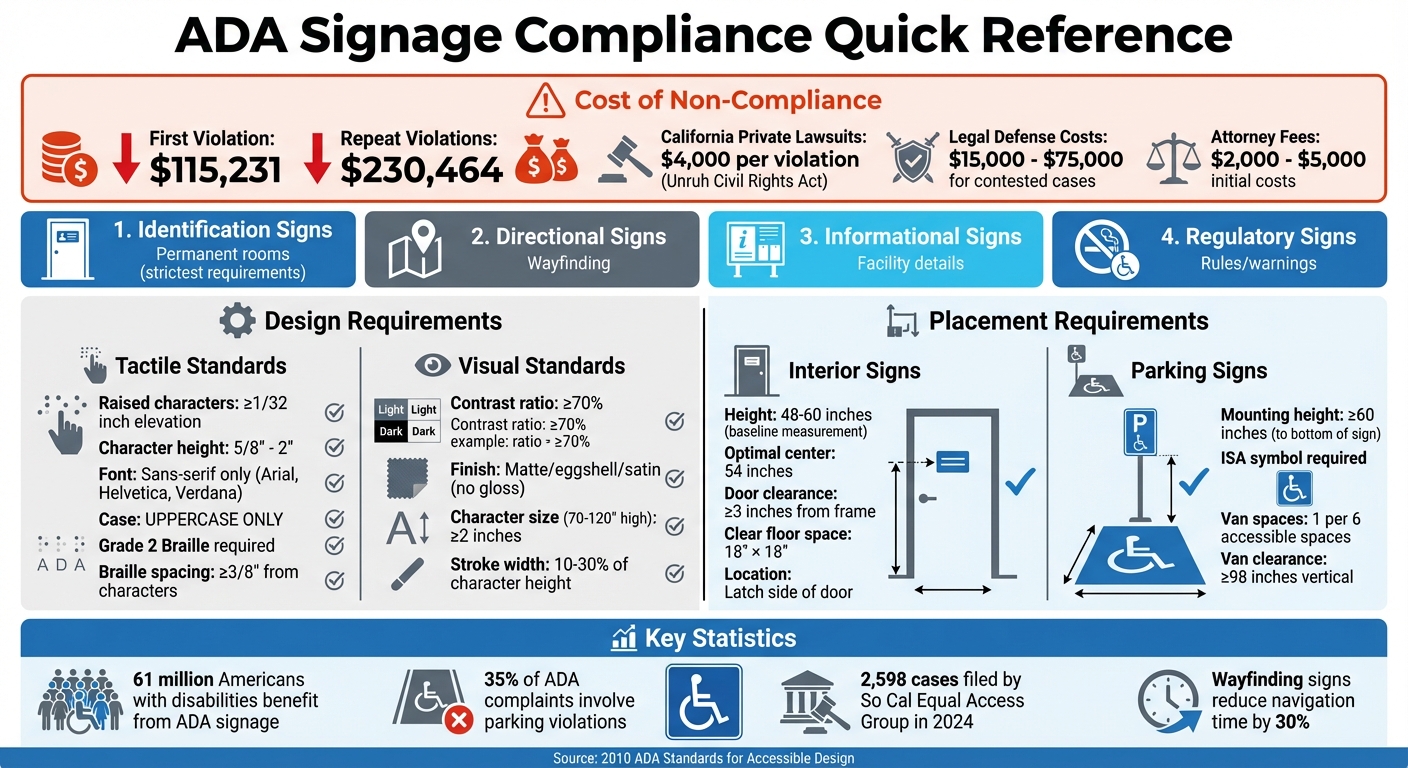

Key takeaways:

• Regulations: ADA signage is required for permanent rooms, parking lots, and wayfinding. Signs must meet tactile, Braille, and visual standards.
• Fines: First violations can cost up to $115,231, while repeat offenses hit $230,464. Private lawsuits add further costs.
• Design Standards: Use raised, sans-serif characters and Grade 2 Braille. Ensure high contrast and matte finishes.
• Placement: Signs must be mounted 48–60 inches above the floor and positioned correctly for accessibility.
• Parking Signs: Accessible spaces require the International Symbol of Accessibility (ISA) and specific height and clearance standards.

Avoid costly mistakes by staying informed about ADA requirements. Regular audits and professional services, like those offered by American Curb Appeal, can help ensure compliance.

ADA Standards: Signs Animation

sbb-itb-bfcbd36

ADA Signage Regulations Explained

The 2010 ADA Standards for Accessible Design outline the rules for signage compliance in commercial spaces and public areas across the U.S. These regulations apply to a wide range of locations, including retail stores, office buildings, hospitals, schools, and parking lots.

Signs are divided into four main categories: Identification signs (for permanent rooms like restrooms or offices), Directional signs (used for wayfinding), Informational signs (providing general details about a facility), and Regulatory signs (displaying rules or warnings). Among these, the strictest requirements apply to identification signs for permanent rooms, which must feature Grade 2 Braille and raised tactile characters.

Knowing what is required - and what is exempt - can save you from costly errors. For example, temporary signs used for seven days or less and company logos are typically exempt from the full technical requirements. On the other hand, permanent room identification signs must follow specific guidelines: they should be mounted on the latch side of the door, with the tactile baseline placed 48–60 inches above the floor. Characters must be raised at least 1/32 inch (0.8 millimeters) and use uppercase, sans-serif fonts like Arial or Helvetica. Decorative, italic, or script fonts should not be used for tactile elements.

Parking lot signage has its own set of rules. Signs for accessible spaces must display the International Symbol of Accessibility (ISA) and be mounted at least 60 inches high for visibility. Parking-related issues account for about 35% of all ADA compliance complaints filed against businesses. These guidelines highlight the legal obligations and common mistakes businesses need to avoid when it comes to ADA signage.

Legal Requirements for Commercial Properties

The ADA classifies retail stores, office buildings, healthcare facilities, and schools as "places of public accommodation," meaning they must comply with these regulations. Accessible signage plays a crucial role in helping over 61 million Americans with disabilities navigate these spaces safely and independently.

The stakes for non-compliance are high. As of 2024, federal penalties are $115,231 for a first violation and $230,464 for repeat violations. Beyond these fines, businesses may face private lawsuits. For instance, in California, plaintiffs can claim $4,000 per violation under the Unruh Civil Rights Act. Legal fees can quickly add up, with initial attorney costs ranging from $2,000 to $5,000 and contested cases potentially costing $15,000 to $75,000 in defense fees.

Serial litigation is another growing concern. In 2024, the So Cal Equal Access Group filed 2,598 cases related to signage errors in just one year. High-traffic locations like retail stores and hotels are frequent targets for lawsuits over issues like incorrect mounting heights or missing Braille. A single violation can lead to broader audits of an entire property portfolio.

Non-compliance comes with hidden costs, too. Incorrect signage can delay permits, stall Certificates of Occupancy, and require expensive last-minute fixes. As David Murphy from Erie Custom Signs points out:

"A missing tactile label or incorrect mounting height can flag your entire project during an inspection. And when that happens, everything stalls, from permits and approvals to timelines."

Even older buildings aren’t exempt - modifications are required to ensure accessibility. Property owners and tenants must also understand their responsibilities: landlords typically handle building-wide signage (e.g., exits and restrooms), while tenants are responsible for signage within their leased spaces, such as office names or directional signs.

Common Misconceptions About ADA Signage

Misunderstandings about ADA signage can lead to costly errors. One common mistake is using the "dynamic" or forward-leaning wheelchair icon in parking areas. This symbol is not federally recognized by the Manual on Uniform Traffic Control Devices and may be rejected by state Departments of Transportation. To avoid compliance issues, stick with the traditional International Symbol of Accessibility.

Another misconception is that all signs must include tactile characters and Braille. In reality, only permanent room identification signs require these features. Other signs, like overhead directional signs or temporary event signage, are exempt from tactile requirements but must still meet basic visual readability standards. For instance, visual-only signs can use mixed-case text for better legibility, while tactile characters must remain entirely uppercase.

Mounting standards are another area prone to errors. Signs must have an 18″ × 18″ clear floor space, centered on the sign and positioned outside the arc of the door swing. Inspectors now use tools like digital measurement apps, contrast luminance meters, and Braille verification gauges to ensure compliance with exacting standards.

The finish of your signs also matters. ADA-compliant signs must have a matte, eggshell, or satin finish to reduce glare, which can make them harder to read for visually impaired users. Glossy finishes, while visually appealing, violate federal standards. While the 2010 guidelines no longer specify exact contrast percentages, a 70% minimum contrast ratio remains the industry best practice for readability and legal protection.

Types of Required ADA-Compliant Signs

Different types of signs come with specific compliance rules. Recognizing what you need can help you avoid legal pitfalls. These categories lay the groundwork for understanding design, placement, and compliance in more detail.

Room Identification Signs

Room identification signs mark permanent spaces like restrooms, offices, conference rooms, storage areas, and utility closets. These signs have the most stringent requirements since they assist individuals with visual impairments in navigating independently.

Each sign must include raised tactile characters (elevated at least 1/32 inch above the surface) and Grade 2 Braille featuring domed or rounded dots. The characters should always be in uppercase, using simple sans-serif fonts like Arial, Helvetica, or Verdana. Avoid italics, script, or decorative fonts.

The rules differ for permanent and temporary signage. Signs for permanent rooms require full tactile and Braille compliance, while temporary signs (used for seven days or less) need only meet visual accessibility standards. Proper implementation ensures compliance while improving accessibility across the property.

Accessible Parking Space Signs

Accessible parking signs help people locate designated spaces and enforce parking rules. Parking-related issues make up about 35% of all ADA compliance complaints filed against businesses.

Each accessible parking space must display the International Symbol of Accessibility (ISA), and van-accessible spaces must include a "Van Accessible" label beneath the ISA symbol. These signs must be mounted at least 60 inches above the ground (measured to the bottom of the sign) to remain visible even when vehicles are parked. Additionally, at least one out of every six accessible parking spaces must be van-accessible.

Van-accessible spaces require either a 96-inch-wide access aisle or a 132-inch parking stall with a 60-inch aisle to accommodate wheelchair lifts. They must also have a minimum vertical clearance of 98 inches. Meeting these standards not only fulfills legal requirements but also ensures a better experience for all users.

Wayfinding and Directional Signs

Wayfinding and directional signs guide people to important accessible features such as elevators, entrances, restrooms, and emergency exits. Effective wayfinding signs can reduce navigation time by 30%. These signs are typically visual-only and don’t require Braille or tactile elements unless they identify a permanent room.

However, they must comply with visual accessibility standards. This includes a high contrast ratio (minimum of 70%), non-glare finishes like matte or satin, and sans-serif fonts. Unlike tactile signs, visual-only directional signs can use mixed case to improve readability at a distance. For signs mounted between 70–120 inches high and viewed from within 180 inches, characters must be at least 2 inches tall. Properly designed wayfinding signs make navigation easier while meeting compliance standards.

“ADA signage compliance has evolved beyond regulatory obligation; it now represents competitive advantage, legal protection, and brand integrity”.

ADA Signage Design Standards

Getting the design right is just as important as picking the correct type of sign. ADA standards lay out detailed measurements and visual requirements to make sure signs are accessible for everyone, including those with visual impairments or blindness.

Tactile and Braille Standards

After choosing the sign type, precise tactile and Braille specifications ensure compliance. Tactile characters must be raised at least 1/32 inch from the background and measure between 5/8 inch and 2 inches in height. The stroke width of an uppercase "I" should be 10% to 15% of the character height. All tactile text must use uppercase sans-serif fonts like Arial, Helvetica, or Verdana. Decorative, script, or italic fonts are not allowed.

Signs must also include Grade 2 Braille, which reduces text length by about 25% to 30% compared to uncontracted Braille. Braille dots need to be domed or rounded - flat or sharp dots are not acceptable - and should be placed directly below the corresponding tactile text. To maintain clarity, there must be at least 3/8 inch of space between Braille and any raised characters, borders, or decorative elements.

"Braille literacy serves as an essential tool for independent living and employment among individuals with visual impairments." - ADAsigns

Visual Character Specifications

Visual characters must have a non-glare finish, such as matte, eggshell, or satin, and a contrast ratio of at least 70% between the text and the background. While mixed-case text is allowed, fonts must avoid italics, script, or decorative styles.

Character proportions are crucial for readability. For example:

• The width of an uppercase "O" should be between 55% and 110% of the height of an uppercase "I."
• The stroke thickness of an uppercase "I" must fall between 10% and 30% of the character height.
• The spacing between individual characters should be 10% to 35% of the character height.
• Line spacing should range from 135% to 170% of the character height.

For signs mounted between 70 and 120 inches high and viewed from up to 180 inches away, characters must be at least 2 inches tall.

International Symbol of Accessibility (ISA)

The ISA is required to mark accessible parking spaces, entrances, restrooms, and check-out aisles. It must follow the standard 1968 ISO design. Alternative symbols can only be used if they meet "equivalent facilitation" standards by providing equal or better accessibility.

The ISA must have a pictogram field height of at least 6 inches, and no text or Braille is allowed within this field. Any descriptive text must be placed directly below the symbol field. For permanent room identification, these descriptors must include raised characters and Braille.

"The ISA continues to be recognized worldwide as a symbol identifying accessible elements and spaces." - U.S. Access Board

Placement Guidelines for ADA-Compliant Signage

Getting the placement of ADA-compliant signage right is just as important as its design. Even the most well-designed signs can fail to serve their purpose if they're installed incorrectly. Ensuring proper height, location, and clearance is key to meeting accessibility standards and legal requirements.

Parking Lot Signage Placement

Accessible parking signs must be mounted at least 60 inches from the ground to the bottom of the sign. This height ensures the sign stays visible, even when vehicles are parked in the space. To avoid obstruction, place the sign at the front of the parking stall and include the International Symbol of Accessibility (ISA).

For van-accessible spaces, an additional "Van Accessible" sign should be mounted directly below the ISA. These spaces must be provided at a ratio of one van space for every six accessible parking spaces. Van-accessible spaces also require a vertical clearance of at least 98 inches, though some facilities go up to 114 inches to accommodate larger vehicles. Make sure there are no obstructions that could block the visibility of these signs.

Proper parking lot signage is just one part of compliance. Interior and exterior sign placement also play a critical role.

Interior and Exterior Sign Placement

When it comes to interior tactile signs, precise placement ensures full ADA compliance. Tactile characters should be mounted between 48 and 60 inches above the finished floor. For optimal readability, center the tactile text at 54 inches above the floor. Place these signs on the latch side of the door, at least 3 inches away from the door frame, and ensure there’s an 18-inch by 18-inch clear floor space outside the door’s swing.

For doors that swing outward into a hallway, position the sign at least 18 inches away from the door’s swing arc. In cases where double doors are used and both leaves are active, but no wall space is available, mount the sign on the right-hand door leaf.

Overhead signs, such as those suspended from ceilings, must maintain a minimum vertical clearance of 80 inches from the finished floor to avoid head-strike hazards.

"Over half of sign designs they review have errors so you should pay double attention to everything." - Green Dot Sign®

Working with American Curb Appeal for ADA Compliance

Navigating the complex requirements of ADA signage and pavement standards can be challenging. That’s where American Curb Appeal steps in, simplifying the process by offering a one-stop solution. Their expertise in pavement maintenance, striping, and signage ensures commercial properties in Tallahassee and North Florida can achieve full ADA compliance without the hassle of managing multiple contractors.

Custom Signage and Pavement Solutions

American Curb Appeal specializes in creating signage that meets all ADA tactile and Braille requirements using durable materials built to last. These signs are designed to maintain the necessary visual standards, providing accessibility for individuals with low vision.

But their services don’t stop at signage. They address critical pavement issues like potholes, cracks, and drainage problems that could compromise safety for wheelchair users. For example, they ensure that accessible parking stalls meet the required maximum slope of 1:48 (approximately 2.08%). This is especially important, as slope violations account for about 35% of all ADA compliance complaints filed against businesses. Their comprehensive approach ensures both safety and compliance.

Integrated Services for Complete Compliance

American Curb Appeal takes a holistic approach to compliance by combining parking lot striping with permanent signage installation. Their services include:

• High-visibility blue and white paint for accessible stalls
• Signage mounted at a minimum height of 60 inches
• ADA-compliant ramps, pathways, and concrete landings to create uninterrupted access from parking areas to building entrances

To further enhance compliance efforts, the company collaborates with Certified Access Specialists (CASp) to conduct detailed site inspections. These inspections identify barriers and develop prioritized remediation plans, helping businesses reduce their legal risks. As ABC Pave explains:

CASp documentation demonstrates that an owner has a qualified assessment and an actionable remediation plan, which courts and regulators view favorably.

Founders Terry and Lori Thompson have built their company on the principle of single-source delivery, eliminating the need for businesses to juggle multiple contractors. By offering custom quotes, they ensure pricing reflects the specific needs and scope of each project, whether it’s a simple striping update or a full-scale accessibility upgrade.

Conclusion and Key Takeaways

ADA-compliant signage isn't just a recommendation - it’s a legal requirement. Violations can result in steep penalties, with fines reaching up to $115,231 for a first offense and $230,464 for subsequent ones. Beyond the legal aspect, proper signage ensures accessibility for approximately 61 million Americans, demonstrating a commitment to inclusivity and corporate responsibility.

To stay compliant, keep these essentials in mind: permanent room signs must include tactile characters and Grade 2 Braille, while all signs should have non-glare finishes and high contrast. For parking lot signs, ensure they are mounted at a height of at least 60 inches to guarantee visibility.

Conducting regular audits can help spot potential violations before they lead to expensive lawsuits. Additionally, remember that local regulations may impose stricter requirements than federal standards, so it’s crucial to check both.

For expert guidance, consider working with professionals like American Curb Appeal. Their comprehensive services simplify the process by addressing both signage and pavement compliance, ensuring your property in Tallahassee or North Florida meets all ADA requirements without the hassle of managing multiple vendors.

These points provide a practical foundation for aligning your property with both legal obligations and accessibility standards.

FAQs

How do I know which signs must include Braille and raised text?

Signs that require Braille and raised text are those that identify accessible spaces and features, like restrooms, exits, room names, and other essential areas within public accommodations. According to ADA standards, tactile characters and Braille are mandatory on signs used for navigation, room identification, or highlighting accessibility features. This ensures people with visual impairments can navigate spaces independently and confidently.

What’s the fastest way to audit my building for ADA signage issues?

The fastest way to identify ADA signage issues is through a visual inspection of critical areas such as restrooms, entrances, and directional signs. Look for key features like tactile characters, Braille, high-contrast colors, non-glare surfaces, and proper mounting heights (measured to the bottom line of tactile characters). Leveraging ADA checklists and measurement tools can make it easier to pinpoint compliance issues and prioritize necessary updates.

Do state or local rules change ADA signage requirements?

Yes, state and local regulations can modify ADA signage requirements to go beyond federal standards. These changes might involve extra rules about placement, design, or materials tailored to local accessibility needs. It's crucial to check both federal and local guidelines to ensure your ADA signage fully complies with the requirements in your area.
